    42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step

    Ask Lasest Price
    Brand Name : Umot
    Model Number : 42SS4002-150N2-300/200N4-300
    Price : $76.94/pieces 2-9 pieces
    • Product Details
    • Company Profile

    42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step

    42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step

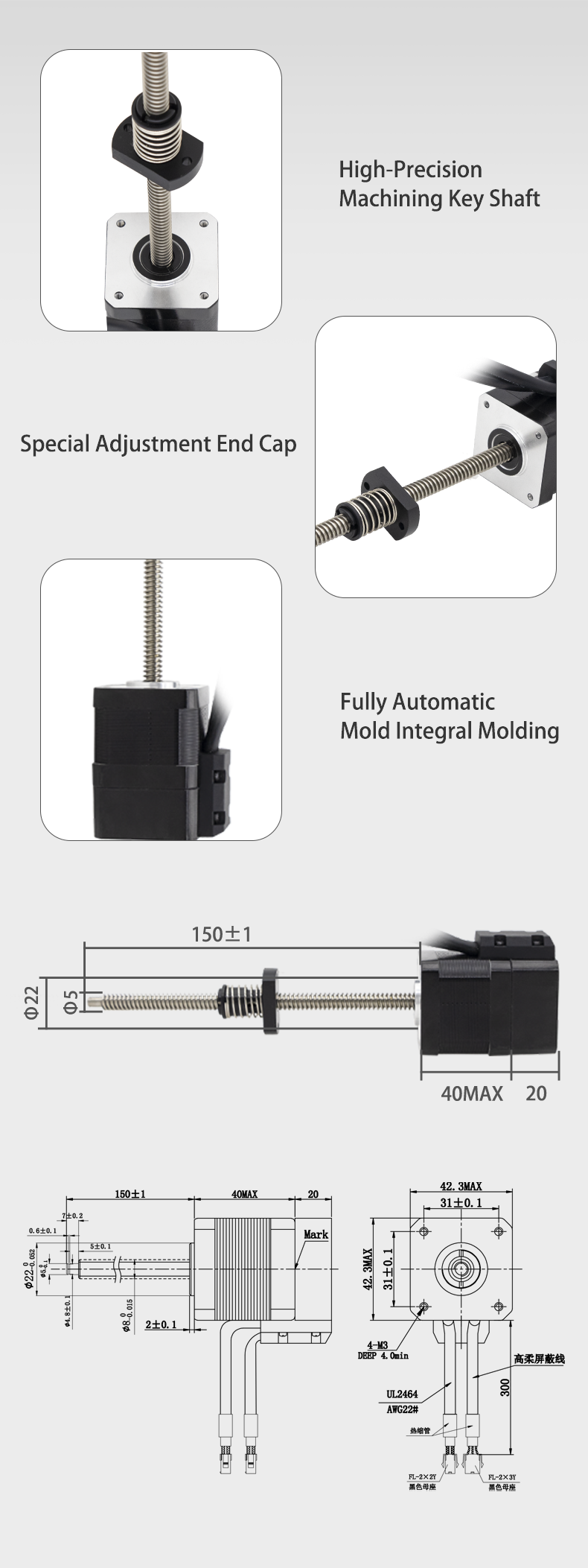

    42mm Micro Closed Loop Linear Stepper Motor Nema 17 Closed Loop Lead Screw Stepper Motor With Lead Screw
    Item
    Value
    Product Name
    Closed Loop Screw Stepper Motor
    Motor Size
    Nema 17 42mm
    Motor Length
    40mm
    Shaft Length
    150/200mm
    Screw Lead
    2/4mm
    Step Length
    0.01/0.02mm
    Phase Number
    2 Phase
    Step Angle
    1.8 degree
    Holding Torque
    ≥450mN.m
    Rated Current
    DC1.68A
    Rated Voltage
    DC2.8V
    Motor Weight
    0.35kg
    Phase Resistance
    1.65±15%ohm(20℃)
    Phase Inductance
    3.3±20%mH(1kHz)
    Rotor Inertia
    40g.cm2
    42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step
    42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step
    42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step
    Quality 42mm Nema 17 Closed Loop Lead Screw Stepper Motor With Step Length 0.01/0.02 mm/step for sale
