    40mm Motor Height Nema 17 Stepper Motor With 400mN.m Holding Torque and 4.2mm Hollow Shaft

    Ask Lasest Price
    Brand Name : UMot
    Model Number : Nema 17
    Price : $17.71/pieces 5-99 pieces
    • Product Details
    • Company Profile

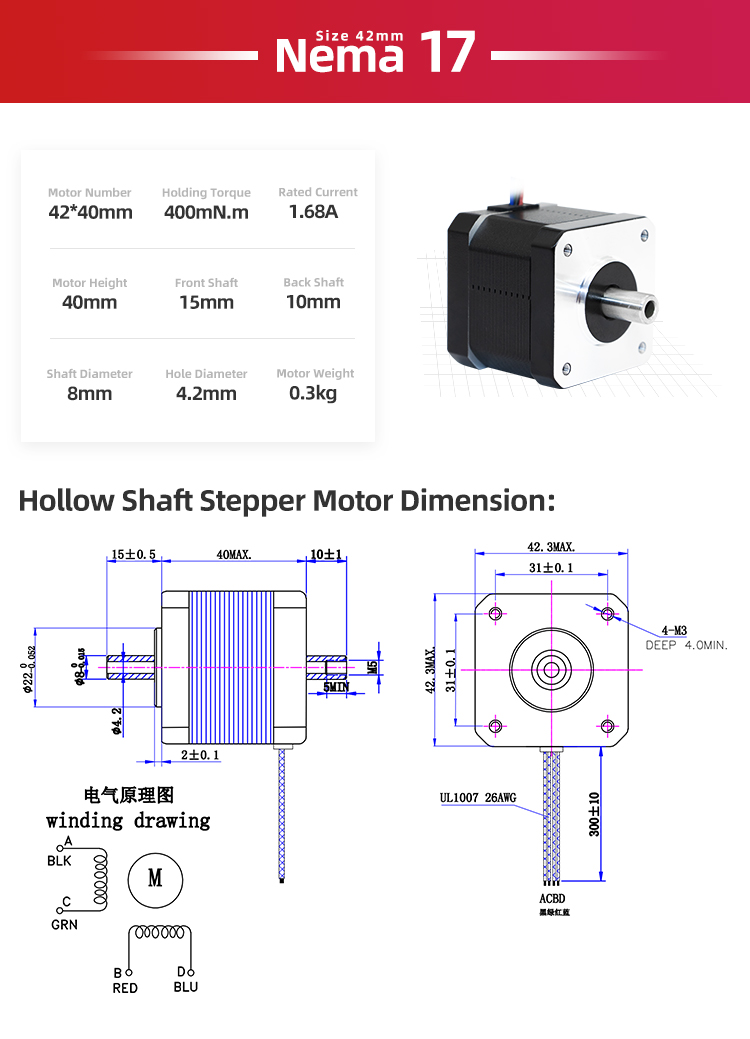

    40mm Motor Height Nema 17 Stepper Motor With 400mN.m Holding Torque and 4.2mm Hollow Shaft

    40mm Motor Height Nema 17 Stepper Motor With 400mN.m Holding Torque and 4.2mm Hollow Shaft
    Cheap Mini Stepper Motor Price Small High Torque Nema 17 Hollow Shaft Stepper Motor For Laboratory Automation
    Item
    Value
    Product Name
    Hollow Shaft Stepper Motor
    Brand Name
    UMot
    Motor Size
    Nema 17
    Step Angle
    1.8°
    Phase Number
    2 Phase
    Motor Height
    40mm
    Holding Torque
    400mN.m
    Rated Current
    1.68A
    Front Shaft
    15mm
    Back Shaft
    10mm
    Shaft Diameter
    8mm
    Motor Weight
    0.3kg
    Temperature Rise
    80°C Max(Rated Current, 2 Phase Power)
    Ambient Temperature
    -20°C-+120°C
    Insulation Resistance
    100MΩMin, 500VDC
    Radial Runout
    0.02 Max.(450g Load)
    Axial Runout
    0.08 Max.(450g Load)
