    Hybrid Stepper Motor With Double Hollow Shaft and Rated Current of 0.8/0.67/1.0/1.68/2.8A

    Ask Lasest Price
    Brand Name : UMot
    Model Number : Nema 8 11 14 17 23
    Price : $27.95/pieces 5-99 pieces
    • Product Details
    • Company Profile

    Hybrid Stepper Motor With Double Hollow Shaft and Rated Current of 0.8/0.67/1.0/1.68/2.8A

    Hybrid Stepper Motor With Double Hollow Shaft and Rated Current of 0.8/0.67/1.0/1.68/2.8A

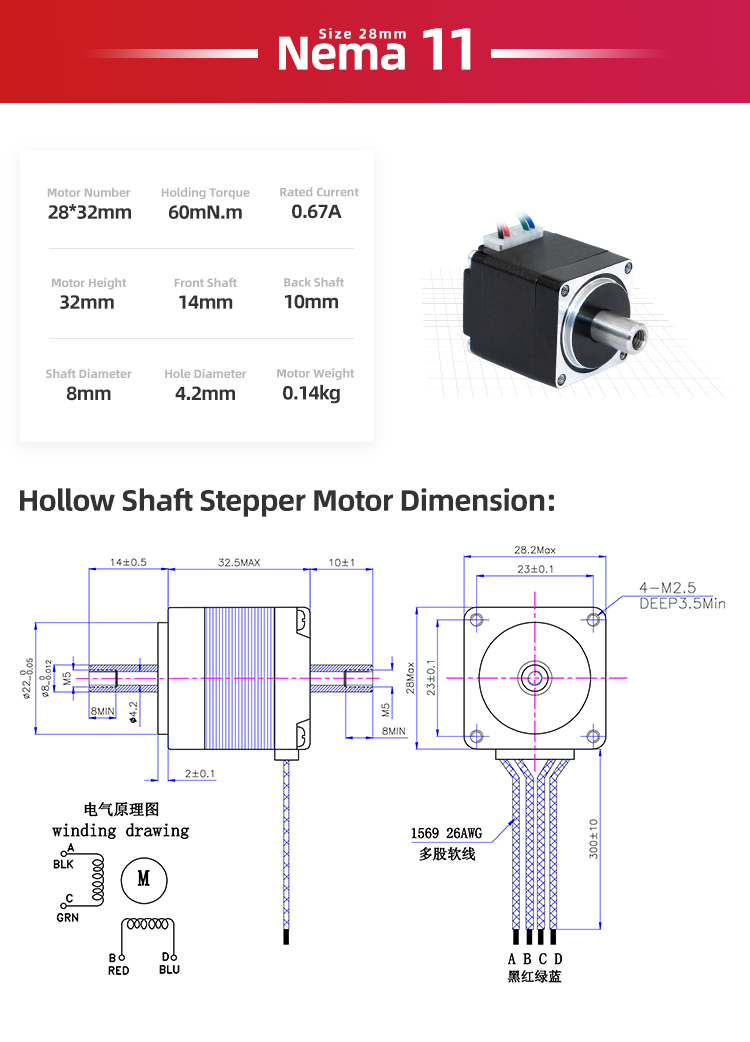

    Hybrid Nema 8/11/14/17/23 Stepper Hollow Shaft Rotary Actuator Micro Hollow Shaft Stepper Motor
    Item
    Value
    Product Name
    Hollow Shaft Stepper Motor
    Brand Name
    UMot
    Motor Size
    Nema 8/ 11/ 14/ 17/ 23
    Step Angle
    1.8°
    Phase Number
    2 Phase
    Motor Height
    41/ 32/ 32/ 40/ 51mm
    Holding Torque
    30/ 60/ 170/ 400/ 1100mN.m
    Rated Current
    0.8/ 0.67/ 1.0/ 1.68/ 2.8A
    Front Shaft
    20/ 14/ 14/ 15/ 37mm
    Back Shaft
    10/ 10/ 7/ 10/ 20mm
    Shaft Diameter
    5/ 8/ 8/ 8/ 8mm
    Motor Weight
    0.1/ 0.14/ 0.15/ 0.3/ 0.6kg
    Temperature Rise
    80°C Max(Rated Current, 2 Phase Power)
    Ambient Temperature
    -20°C-+120°C
    Insulation Resistance
    100MΩMin, 500VDC
    Radial Runout
    0.02 Max.(450g Load)
    Axial Runout
    0.08 Max.(450g Load)
